Cross-Family LLM-Judge Agreement for Institutional RAG

Headline numbers

Four findings

• C1 Cross-family reasoning judges converge at κ ≥ 0.75. Five cross-family pairs reach substantial-or-better κ — well above the 0.4–0.6 typical [Rahmani 2024] and the 0.60 unweighted GPT-4o↔Llama-3.1-405B baseline of [Thakur 2025]. DeepSeek V4 Pro joining the cluster rules out a "Western training data" explanation; the pattern replicates across three independent ablation scales (5/7/9-judge).
• C2 Within-family agreement is bounded by the cross-family ceiling. No within-family pair dominates: Anthropic 0.71, OpenAI 0.63, Google-commercial 0.67, cross-organization Open-weight 0.80. At odds with self-preference findings on open-ended generation [Panickssery 2024]; suggests self-preference is mediated by output-space boundedness, not provider lineage.

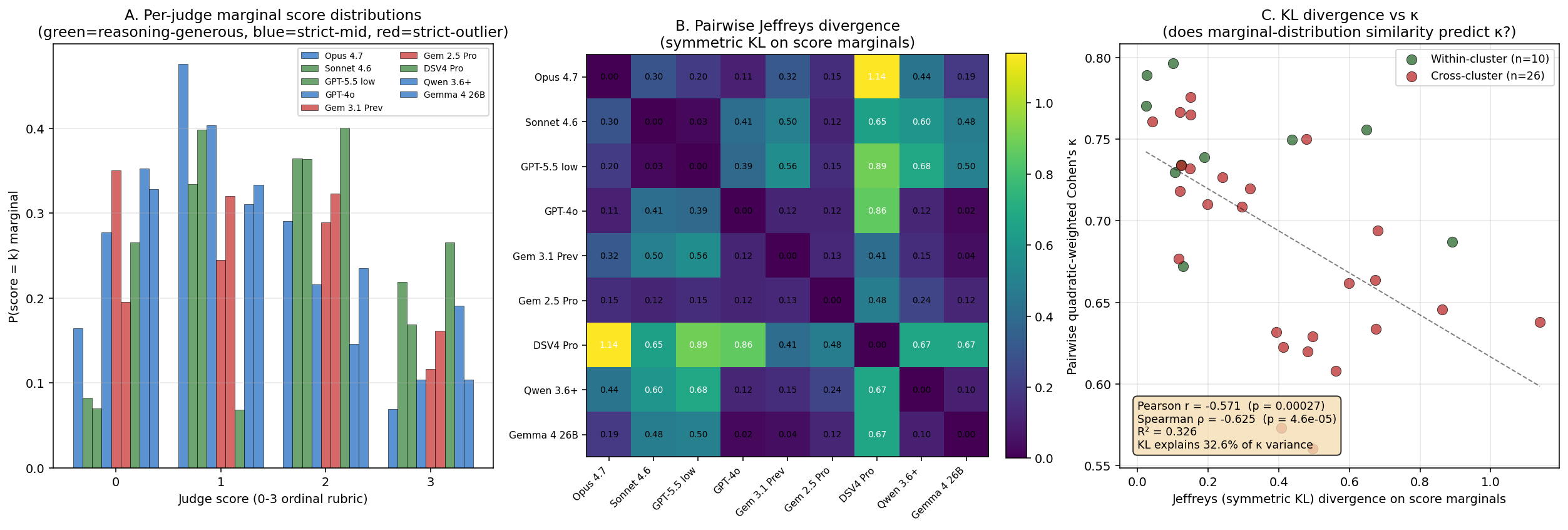

• C3 Open-weight judges produce the matrix-highest κ. Qwen 3.6 Plus ↔ Gemma 4 26B = 0.80 — exceeds every commercial within-family pair, ties the cross-family reasoning ceiling. Both open-weight judges cluster with strict-mid commercial models (mean 1.11–1.18) not with reasoning-generous reasoning models (1.63–1.68). At ~$0.30 marginal cost, a free on-prem cross-organization open-weight ensemble outperforms ~$18 of commercial within-family calls.
• C4 Open-source toolkit and disclosure template. We release the multi-judge harness (eval_llm_judge.py), the external-validation harness (validate_against_trec.py), the cross-run merge tooling, the 57-query REFINE set, the rubric template, all 9 within-corpus per-judge JSONs (5,130 records), and 9 external-validation JSONs (4,833 records).

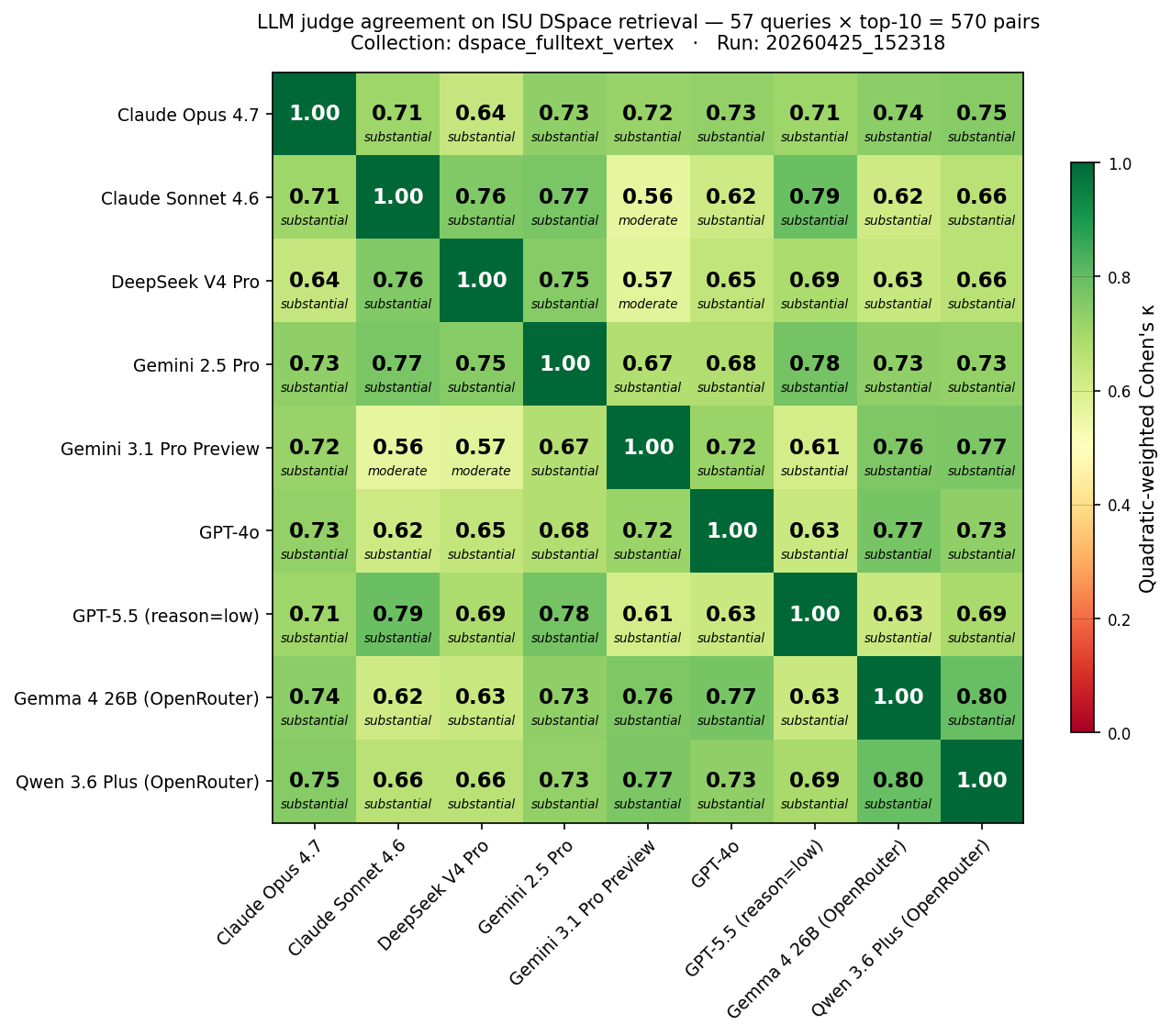

9-judge κ matrix

Why disclosure matters: a 1.9× spread

The same 570 retrieved documents yield wildly different aggregate verdicts depending only on which LLM judges them. nDCG@10 ranges from 0.45 (Gemini 3.1 Pro Preview) to 0.86 (Sonnet 4.6) — a 1.9× spread driven entirely by judge selection. A practitioner using Sonnet concludes the pipeline is excellent; using Gemini 3.1 Prev, the same pipeline appears broken.

Mechanism: joint-distribution structure

What predicts pairwise κ? Joint-distribution structure of paired scores — specifically dispersion (variance product) and effective rank — explains R² = 93% of κ variance. Structural factors (provider, reasoning-mode, model class) are fully mediated: they affect κ only through the joint distribution they induce. The shared-tokenizer hypothesis is refuted: Qwen ↔ Gemma 4 vocabulary Jaccard = 0.066 (lowest in slate) yet κ = 0.80 (matrix-highest) — convergence happens at the decision-making layer, not lexical encoding.

External validation against NIST human qrels

To address single-corpus exposure, we replicated the 9-judge slate on two public benchmarks with NIST/BEIR-curated relevance judgments.

TREC RAG 2024 (537 stratified-balanced pairs, 0–3 ordinal κ)

• Per-judge κ vs human qrels: 0.40–0.55
• 9-judge ensemble median κ = 0.4941 (Landis-Koch moderate, near-substantial)
• 7-judge frontier-only κ = 0.5187 (open-weight broadens coverage, slightly lowers κ — a robustness/headline tradeoff)
• 5 of 9 judges hit κ ≥ 0.47

BEIR scifact (300 pairs, all-positive qrels → precision)

• 9-judge ensemble precision at score ≥ 2: 65.7% (range 43–75% across judges)

TREC-COVID biomedical scientific (300 pairs, 0–2 qrels → 0/2/3 rubric, 9 judges)

• 9-judge ensemble κ vs NIST human qrels: 0.3447 (Landis-Koch fair, near-moderate)
• Frontier-7 ensemble κ for reference: 0.4462 (moderate)
• Per-judge κ range: 0.22–0.53 (Opus 4.7 leads at 0.5323, Gemini 2.5 Pro insufficient overlap due to thinking-mode parse aborts)
• Coverage: Sonnet, GPT-5.5, GPT-4o, Qwen, Gemma all 100%; Opus 84%, DSV4 83%; Gemini 3.1 Prev 44%, Gemini 2.5 Pro 6%

Open-weight broadens coverage but lowers ensemble κ more on biomedical (−0.10) than on web (−0.025 on TREC RAG 2024) — Qwen and Gemma 4 individual κ on biomedical (0.32 / 0.27) trail their TREC RAG 2024 numbers (0.41 / 0.40), suggesting the open-weight headline tradeoff is content-domain dependent. Three independent public corpora — web (TREC RAG 2024), scientific fact-verification (BEIR scifact), biomedical (TREC-COVID) — all return ensemble agreement above chance, with the moderate-band landing on web and the fair-near-moderate band on biomedical.

Validation pipeline replaces a per-institution IRB study (~$1,500–3,000, 6–12 weeks) with public-NIST evidence (~$56, ~13 hours).

Reproduce

Setup

git clone https://github.com/asukul/RAG-Eval-LLM-Judge
cd RAG-Eval-LLM-Judge
pip install -r requirements.txt
cp .env.template .env       # add OPENAI_API_KEY + OPENROUTER_API_KEY

Within-corpus replication (your own collection)

py -3 src/eval_llm_judge.py \
    --collection <your-collection> \
    --judge-preset p4-frontier
# ~$18.30, ~5.5 h wall

External validation (TREC RAG 2024)

py -3 src/validate_against_trec.py \
    --corpus trec-rag-2024 \
    --judge-preset p4-frontier \
    --max-pairs 537
# ~$35, ~7.5 h wall

Regenerate the κ heatmap

py -3 src/make_kappa_heatmap.py \
    --input results/<your-multijudge-json> \
    --output figures/kappa_matrix_9judge.png

Model versions pinned 2026-04-25. Targeting SIGIR Artifact Badging (Functional/Reusable).

Cite

@inproceedings{sukul2027p4llmjudge,
  title    = {Cross-Family LLM-Judge Agreement for Institutional RAG:
              A 5-Family, 9-Judge Ablation},
  author   = {Sukul, Adisak},
  booktitle = {Proceedings of the LLM4Eval Workshop at SIGIR 2027},
  year     = {2027},
  note     = {arXiv preprint forthcoming},
  url      = {https://github.com/asukul/RAG-Eval-LLM-Judge}
}

See CITATION.cff for machine-readable citation metadata.
